FKM O Ring Temperature Range
video

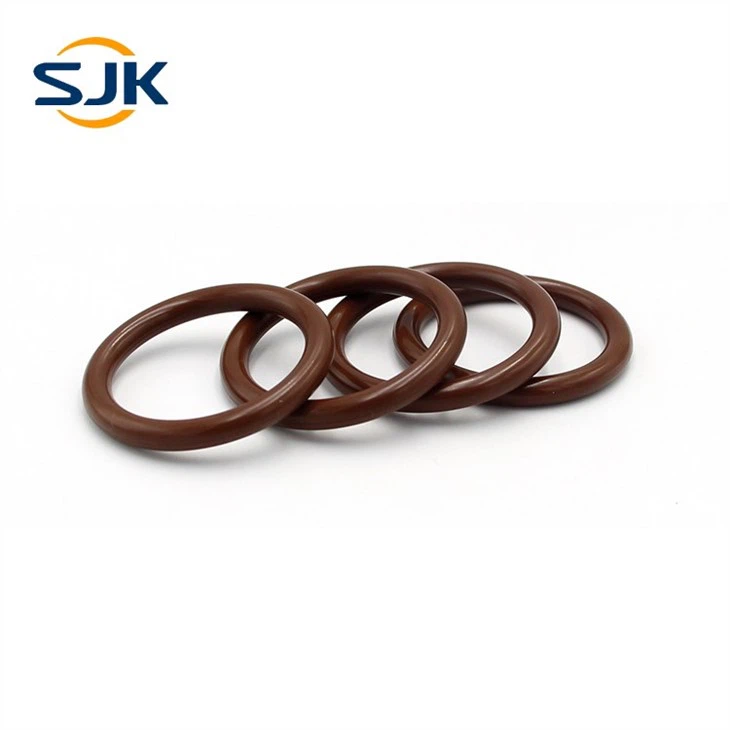

FKM O Ring Temperature Range

FKM O Ring Temperature Range

Size: Standard, custom made
Color: black, brown, red, green, as you need
Send Inquiry
Product Details ofFKM O Ring Temperature Range

Zhejiang Jiacheng New Material Co., Ltd. is one of the leading manufacturers and suppliers of fkm o ring temperature range in China, also supports customized service. Welcome to wholesale bulk high quality fkm o ring temperature range in stock here from our factory. If you have any enquiry about quotation and free sample, please feel free to email us.



FKM ORing High Temperature Range

FKM Operating Temperature Guide & Viton O-Ring Temperature Range

The remarkable heat stability and wide chemical resistance of fluoroelastomer (FKM/Viton®) O-rings are widely acknowledged. The compound formulation (Type A, B, F, Low-Temp GLT/GFLT, or FFKM), exposure to harsh chemical environments, and thermal limits (-20°C to +220°C for standard grades) must all be considered in order to determine the actual dynamic FKM rubber operating temperature.

In order to prevent premature sealing failure in tough industrial environments, this comprehensive guide offers design engineers and procurement teams a detailed temperature-media compatibility matrix, thermal degradation mechanism analysis, and anti-extrusion selection tactics.

Request Aquote

FKM/Viton O-Ring Temperature Range Cross-Reference Diagram



Standard FKM compounds exhibit short-term peaks up to +230°C (+446°F) and sustained performance between -20°C and +200°C (-4°F to +392°F). It is necessary to choose specific monomer compositions for high-heat or extremely cryogenic conditions.



FKM Polymer Grade Continuous Temp Range Peak / Short-Term Temp Glass Transition Temp (Tg) Primary Application & Media Suitability
Standard FKM (Type A - 66% Fluorine) -20°C to +200°C (-4°F to +392°F) +220°C (+428°F) -17°C (+1.4°F) General industrial hydraulics, mineral oils, petroleum fuels, aliphatic hydrocarbons.
High-Fluorine FKM (Type F - 70% Fluorine) -15°C to +210°C (+5°F to +410°F) +230°C (+446°F) -13°C (+8.6°F) Oxygenated automotive fuels, biofuels, aggressive chemical processing, concentrated acids.
Low-Temp FKM (GLT / GFLT Grade) -40°C to +200°C (-40°F to +392°F) +220°C (+428°F) -30°C to -40°C Aerospace fuel systems, oil & gas exploration in arctic/cold climates, low-temp gas valves.
Perfluoroelastomer (FFKM Alternative) -15°C to +315°C (+5°F to +600°F) +330°C (+626°F) -10°C (+14°F) Semiconductor manufacturing, extreme thermal cracking units, steam systems >200°C.



Dual-Impact Mechanics: Chemical Media and Temperature Overlap

Pure thermal deterioration is uncommon in practical settings; the synergy of thermal and chemical degradation typically speeds up sealing failure. Chemical reaction rates double roughly every 10°C as the temperature rises, significantly changing the behavior of elastomers.

1. Polymer Network Cleavage and Thermal Swelling
Cross-link cleavage within the FKM polymer backbone is accelerated by high ambient temperatures (>150°C) and harsh chemicals (such biodiesel, amines, or synthetic ester oils). This causes a loss of sealing force (compression set), a permanent decrease in hardness, and severe volumetric swell (>15%).

2. Thermal embrittlement and high-temperature hardening
Heat exposure close to the upper range (+200°C to +220°C) eliminates plasticizers and results in oxidation after curing. During temperature pressure cycles, the seal loses elasticity, becomes brittle, and develops microcracks under dynamic gland stress, which causes abrupt fluid loss.

3. Glass Transition (Tg) Leakage at Low Temperatures
FKM changes from a flexible elastomer to a stiff glass-like state when temperatures approach the polymer's Glass Transition Point (Tg). The seal loses all resiliency even though it does not physically shatter. Low-temperature bypass leakage occurs when the O-ring is unable to sustain contact pressure against the mating groove wall due to system pressure fluctuations at sub-zero temperatures (-20°C or lower for normal Viton).

FKM O Ring Low Temperature Range



Free Online Technical Assessment: Is FKM Appropriate for Your Media and Temperature?



Are you unsure if your operating parameters call for regular Viton, Low-Temp GLT, or High-Fluorine FKM? For a free thermal compatibility evaluation by our application engineers, provide your application circumstances below.



[Form for Interactive Application Compatibility]
Minimum Operating Temperature (°C/°F):
Maximum Temperature at Work (°C/°F):
Operating Gas, Fluid, and Media Contacted:
Operating Pressure (PSI/Bar):
System Motion Type: [Rotary Shaft, Dynamic Rod, Dynamic Piston, Static Flange]
Company name and work email:



Get a Free Sample Kit and a Bulk Quote

Get in touch with SJK right now to talk about your pressing sealing issues!



Common Questions Regarding FKM and Viton Temperature Limits



Q1: How does exposure to temperatures above +220°C affect a Viton O-ring?

A: Thermal deterioration, loss of cross-linking density, and severe compression set are caused by temperatures above +220°C. Catastrophic leakage will result from the O-ring hardening, losing its suppleness, and quickly developing flat patches.

Q2: Are FKM O-rings suitable for use in steam or hot water systems?

A: Polymer hydrolysis causes standard bisphenol-cured FKM (Type A) to break down quickly in hot water or steam above +120°C. Specialized FEPM/FFKM materials or peroxide-cured high-fluorine FKM are required for steam service up to +160°C.

Q3: How can I choose an FKM O-ring for extremely cold conditions (-40°C)?

A: Around -20°C, standard FKM freezes and leaks. Low-Temperature FKM grades incorporating perfluoromethyl vinyl ether (PMVE) polymers, also referred to as Viton® GLT or GFLT, are required for continuous operation down to -40°C.

Q4: Do static and dynamic FKM seals have the same working temperature range?

A: Not at all. FKM can function nearer to its extreme thermal limitations (-20°C to +200°C) for static applications. In order to account for wear rate acceleration and frictional heat generation, the feasible temperature range for dynamic dynamic sealing is lowered by 10°C to 15°C.
