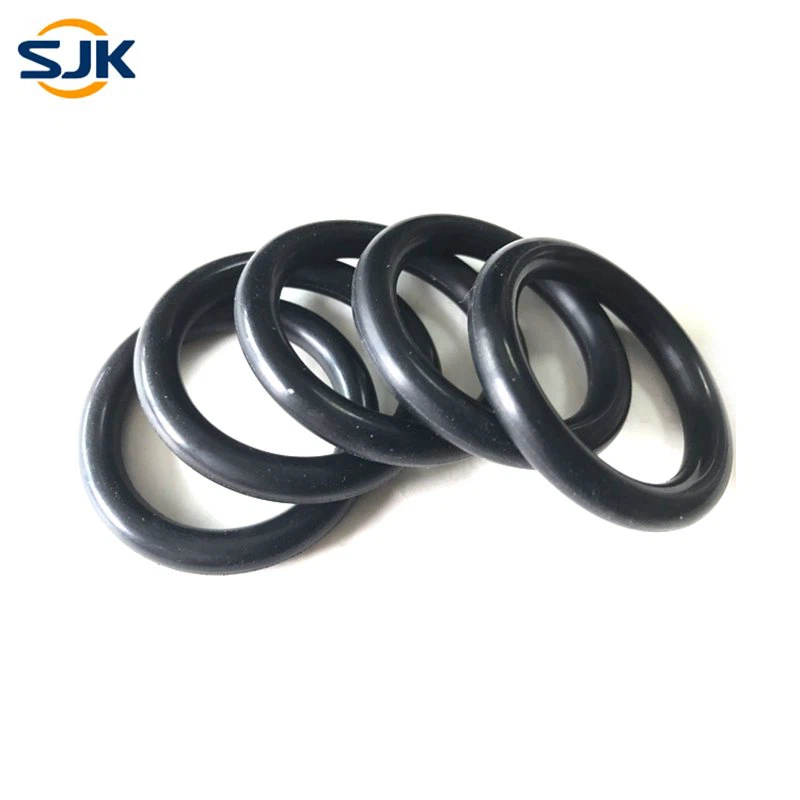

O Ring Viton 90 Shore

Zhejiang Jiacheng New Material Co., Ltd. is one of the leading manufacturers and suppliers of o ring viton 90 shore in China, also supports customized service. Welcome to wholesale bulk high quality o ring viton 90 shore in stock here from our factory. If you have any enquiry about quotation and free sample, please feel free to email us.

Product name: o ring viton 90 shore

Size: There are standard and non-standard sizes

Color: generally, if you have special request at high hardness or high pressure resistant, we suggest color black, since black ones has carbon which has a good reinforcing effect than other colors.

When you need to choose o ring Viton 90 shore?

One of the big factors of hardness choose principle is the pressure. O ring viton 90 shore is used when there is high pressure. Common hardness of FKM is 75±5 Shore A, which can resistant to around 8-10 Mpa in static sealing

Static seal working pressure

When there is no retaining ring, the maximum pressure can reach 20MPa;

With retaining ring, the maximum pressure can reach 40MPa;

When using special retaining ring, it can reach 200MPa at most.

Dynamic seal working pressure

When there is no retaining ring, the maximum pressure can reach 5MPa;

When there is a retaining ring, the pressure is higher.
